What Is Silicon Steel? The Engine Behind Efficient Electrical Transformers

In the world of electrical engineering and power distribution, certain materials are fundamental to making our modern grid possible. One such material is silicon steel, also commonly known as electrical steel. But what is silicon steel exactly, and why is it so critical? This blog dives into its properties, primary application, and the clever design that makes it indispensable.

What Is Silicon Steel?

At its core, silicon steel is a specialized steel alloy containing silicon (typically between 1% to 4.5%). The addition of silicon fundamentally changes the properties of plain steel. It significantly increases the material's electrical resistivity and reduces its hysteresis loss. Most importantly, it enhances magnetic permeability—the ease with which a material can support the formation of a magnetic field.

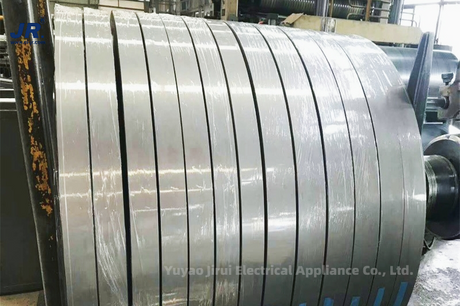

These combined properties make silicon electrical steel sheet the premier material for managing alternating magnetic fields with minimal energy loss in the form of heat.

The Heart of the Transformer: The Iron Core

The most vital application of silicon steel is in forming the core of transformer material. Whether you're looking at a massive utility substation iron core transformer or a small power adapter, you'll find a carefully constructed iron core for transformer at its center.

This transformer iron core serves a crucial function: it provides a low-reluctance path for magnetic flux, allowing for the efficient transfer of electrical energy from one circuit to another via electromagnetic induction. The efficiency of this process hinges almost entirely on the core material.

Why Laminations Are Key: Fighting Eddy Currents

A solid block of silicon steel would still experience significant energy loss. This is where a brilliant engineering solution comes in: the use of electrical steel laminations.

Transformers are built using a laminated core. This means the iron core in transformer is not a single piece but is instead assembled from many thin, insulated layers of silicon steel—steel laminations. These transformer laminations or transformer steel laminations are stacked together to form the complete laminated iron core transformer.

The purpose of this laminated core design is to drastically reduce eddy currents. These are wasteful, circulating currents induced in the core by the changing magnetic field. By slicing the core into thin steel laminations coated with an insulating layer, the path for these currents is broken, and losses are minimized. Therefore, a laminated core transformer is far more efficient and cooler-running than a hypothetical solid-core version.

Beyond Power Transformers

While the laminated core transformer is its flagship use, silicon steel also forms the essential laminated iron core in other electromagnetic devices, including:

 ·Electric motors and generators

 ·Inductors and chokes

 ·Certain types of relays

Conclusion

So, what is silicon steel? It is a strategically engineered alloy that forms the silent, efficient backbone of our electrical infrastructure. Its use in creating the laminated core of an iron cored transformer is a classic example of materials science and design ingenuity working together. By understanding the role of silicon electrical steel sheet and the principle of steel laminations, we appreciate the hidden technology that reliably delivers power to our homes, industries, and cities every single day.
