EI Silicon Steel Laminations: Definition, Advantages, And Applications

What is EI Silicon Steel Lamination?

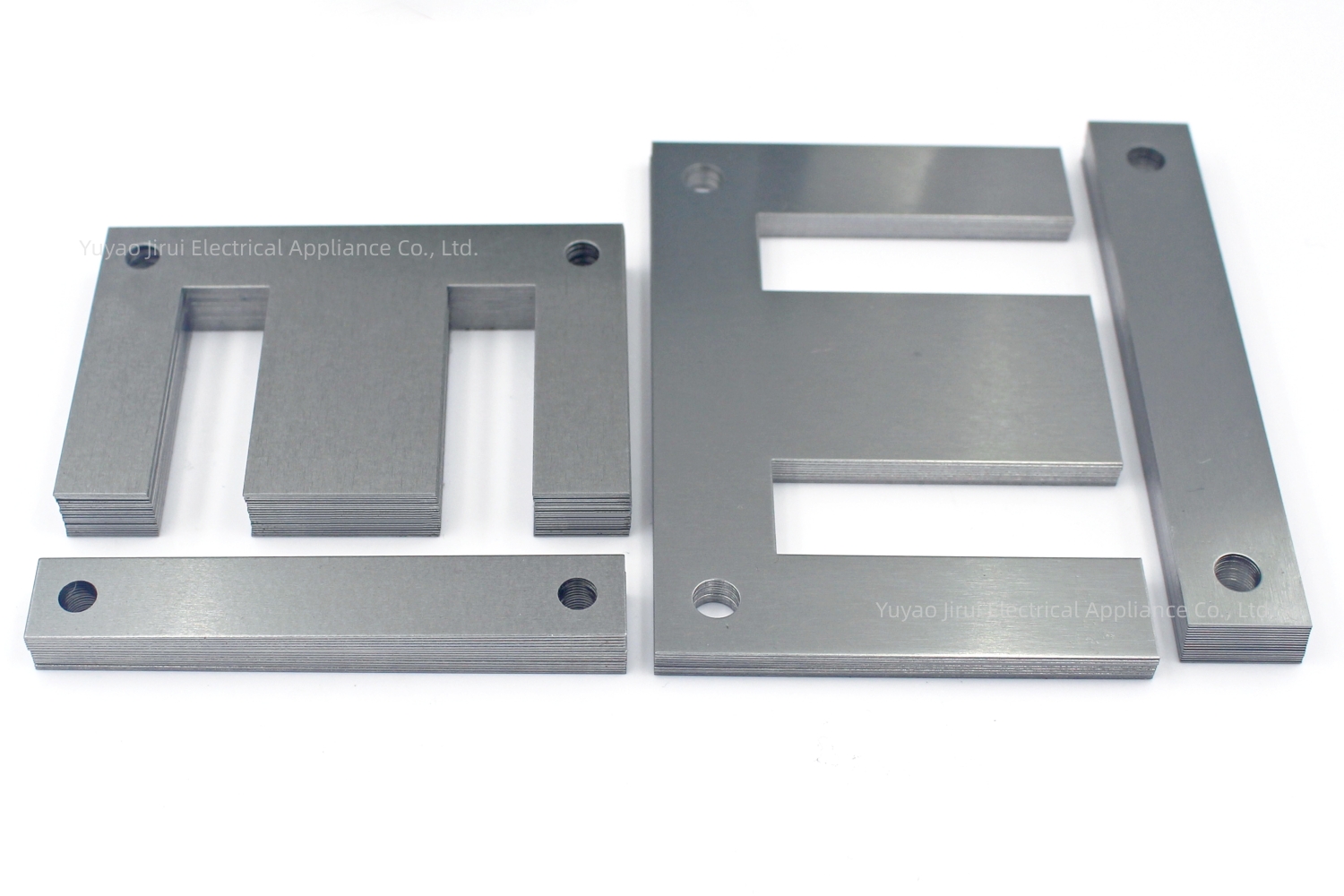

EI silicon steel laminations are core materials made by stamping silicon steel (also known as electrical steel) into "E" and "I" shaped pieces. The name derives from their distinct geometries:

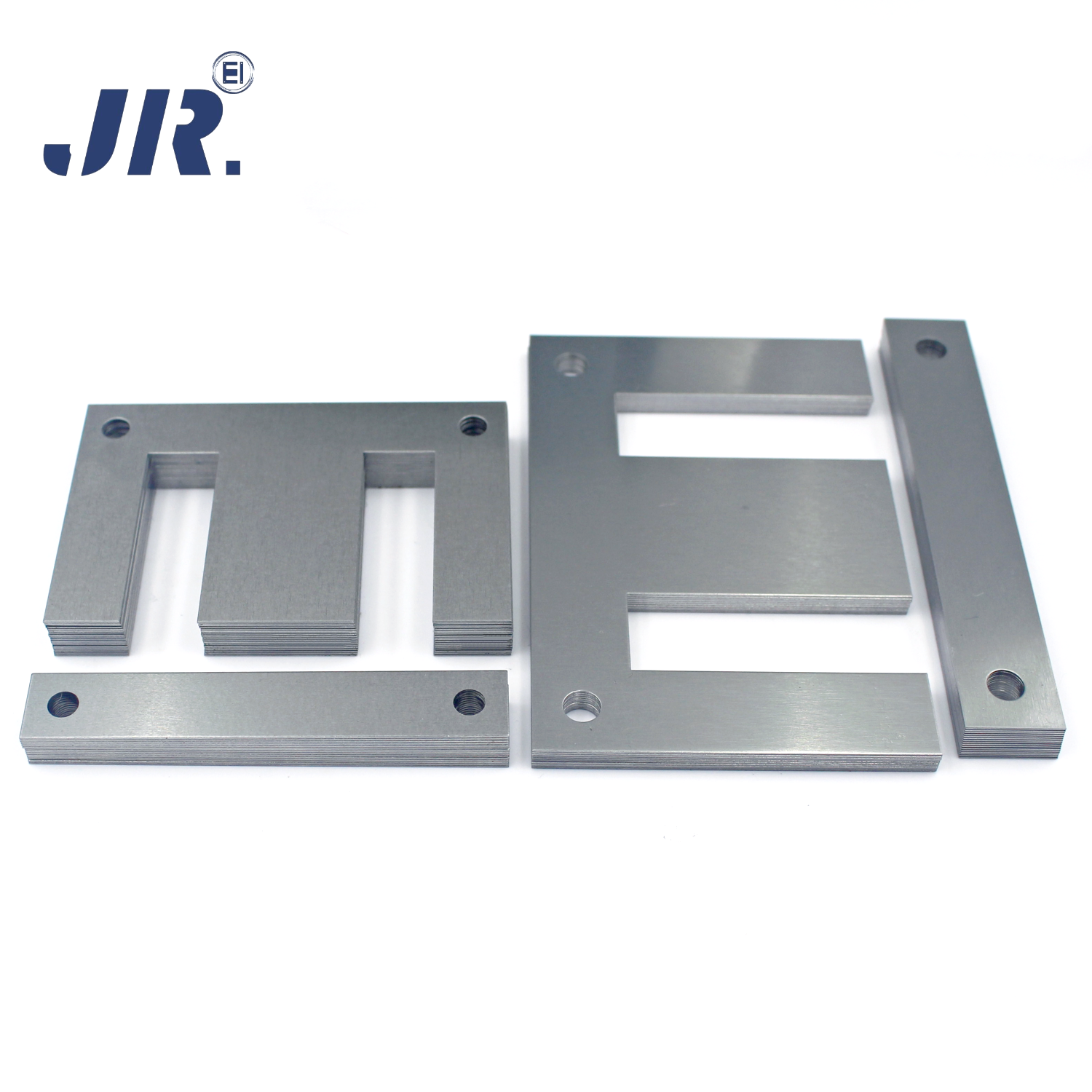

8.1


·E-lam: A three-limbed "E" shape;

·I-lam: A straight bar that closes the magnetic circuit.

These laminations are coated with an insulating layer and stacked alternately to form a complete magnetic core, widely used in electromagnetic devices like transformers and motors.




Advantages of EI Silicon Steel Laminations

Powering energy-efficient innovation through core materials – Jirui Electrical Appliance, your trusted electromagnetic solutions partner!

1. Low Core Loss

Silicon content (3~5%) reduces hysteresis and eddy current losses, improving energy efficiency.

2. High Magnetic Permeability

Enhances magnetic flux conduction, reduces excitation current, and improves device performance.

3. Lamination Suppresses Eddy Currents

Thin layers (0.35~0.5mm) with insulation coatings block eddy current paths, minimizing heat generation.

4. High Mechanical Stability

Interlocking E/I design enhances structural rigidity, reducing vibration and noise.

5. Cost-Effectiveness

Standardized stamping process enables mass production at low cost.


Appliations

1. Transformers

Power Distribution Transformers: Dominant choice for small-medium transformers (e.g., adapters, chargers).

2. Electric Motors

AC Motors & Stepper Motors: Used in stators to establish efficient magnetic circuits.

3. Reactors & Inductors

Serves as cores for filter inductors and PFC chokes in power electronics.

4. Instrumentation

Core material for current transformers, sensors, and precision instruments.


EI silicon steel laminations, with their low loss, high stability, and cost efficiency, form the foundation of modern electromagnetic devices. As industries advance toward higher efficiency and miniaturization, partnering with experienced manufacturers becomes pivotal.


Yuyao Jirui Electrical Appliance Co., Ltd., with over 20 years of expertise, delivers premium EI lamination solutions through:
Proven Craftsmanship: Over 20 years of technological accumulation
Full-process QC: Strict control quality from material sourcing to stamping
Customization: Tailored E/I designs for specialized magnetic circuits
Scalable Supply: Automated production lines ensuring bulk order stability


Powering energy-efficient innovation through core materials –

Jirui Electrical Appliance, your trusted electromagnetic solutions partner!

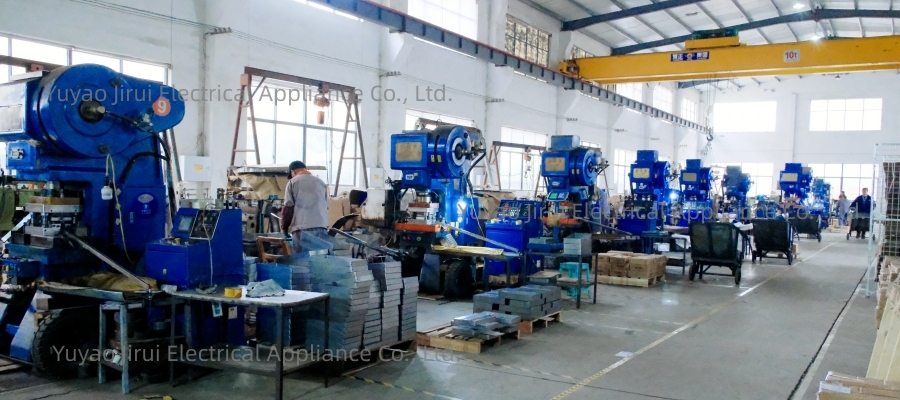

厂照片带水印
