Chamfering of Silicon Steel Toroidal Cores: Functions, Application Scenarios and Trade-off Reasons

Views: 0 Author: Site Editor Publish Time: 2026-01-23 Origin: Site

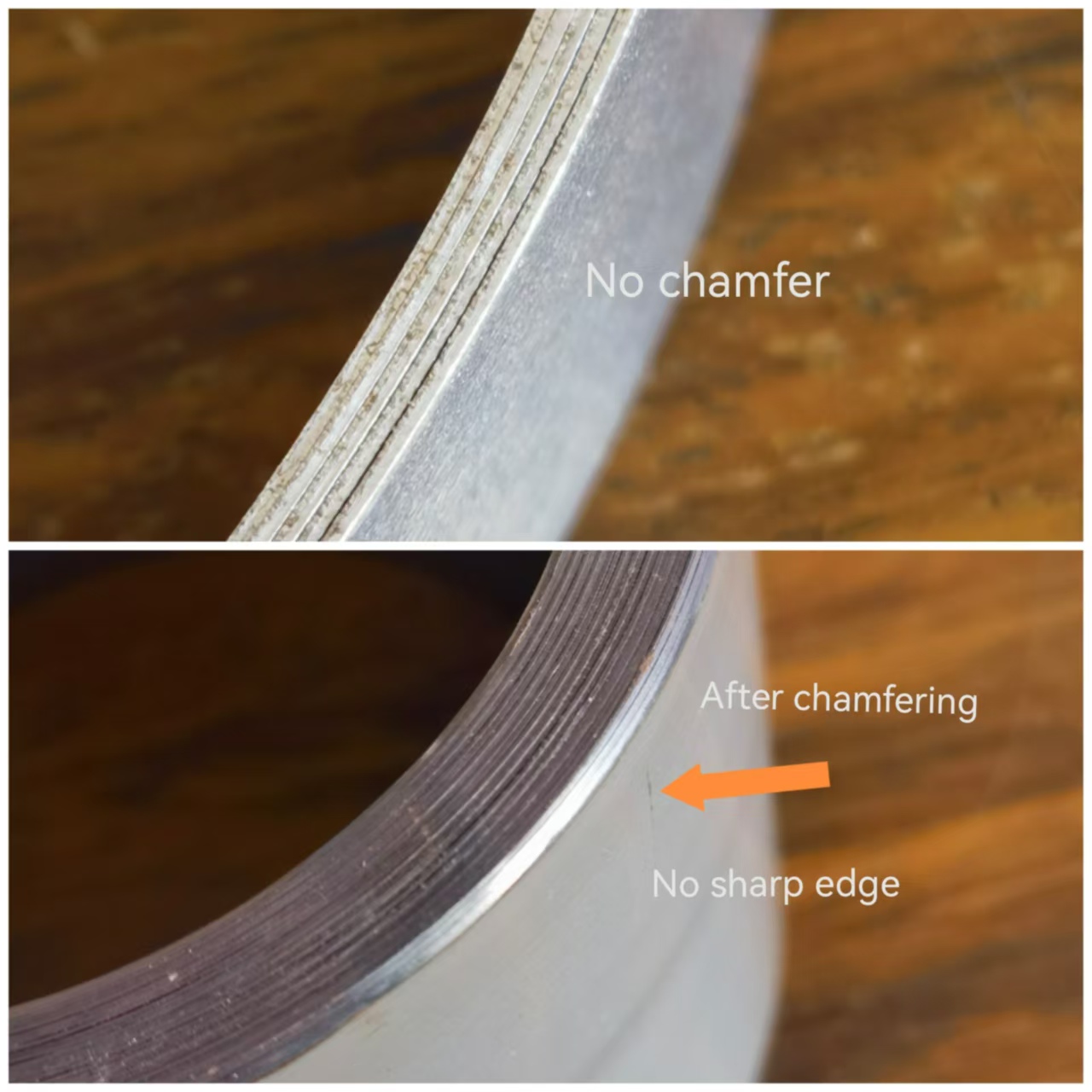

Chamfered or non-chamfered toroidal core

As a core component of power electronic equipment, Toroidal Core is widely used in transformers, inductors, sensors and other products, among which Transformer Core is one of the core application scenarios of Toroidal Core. Silicon steel has become the mainstream raw material for Toroidal Core and Transformer Core due to its excellent magnetic permeability and low iron loss characteristics. In the processing of silicon steel Toroidal Core, "chamfering" is a common but non-essential process—some cores undergo precise chamfering, while others retain their original edges. This article will deeply analyze the function of chamfering for silicon steel Toroidal Core, the differences between scenarios requiring and not requiring chamfering, providing references for industry selection and processing.

I. Core Functions of Chamfering for Silicon Steel Toroidal Cores

Chamfering is a process that converts sharp edges of the core into smooth arcs or bevels through mechanical processing. Based on the characteristics of silicon steel, its functions are mainly reflected in the following four dimensions:

1. Optimize Magnetic Field Distribution and Reduce Iron Loss

The magnetic permeability of silicon steel Toroidal Core directly determines equipment performance, especially for Transformer Core, where magnetic stability is a key factor affecting transformer operation efficiency. Sharp edges without core chamfering are prone to generating the "edge effect"—magnetic lines of force are excessively concentrated at the edges, leading to excessive local magnetic field strength, uneven distribution, reduced magnetic energy utilization, increased iron loss and equipment heating. Core chamfering can effectively weaken the edge effect and flatten the change of magnetic field gradient. Studies have shown that a 45° chamfer with a 2mm chamfer length can significantly reduce the weak magnetic field area inside the silicon steel Toroidal Core, make the magnetic field strength distribution more uniform, and ensure that the core magnetic field strength meets the requirements of equipment such as Transformer Core. For grain-oriented silicon steel cores, chamfering at the tooth root (optimally 40°-60°) can also optimize the angle between magnetic lines of force and the easy magnetization direction of silicon steel, further reducing iron loss and realizing silicon steel core performance optimization.

2. Protect Windings and Improve Product Reliability

After stamping, winding and lamination forming of silicon steel sheets, burrs and sharp edges often remain. During coil winding, these edges are likely to scratch the wire insulation layer, causing inter-turn short circuits, leakage and other faults, seriously affecting equipment service life. The smooth edges after core chamfering can avoid insulation damage, provide cushioning for windings, and reduce friction loss between wires and the core. Industry standards recommend that the ratio of chamfer radius to outer diameter of toroidal cores should not be less than 1/30 to fully protect the wire coating. In addition, for scenarios such as stator cores where copper wires need to be embedded, slot chamfering can expand the assembly inner hole, reduce the length of coil ends, improve copper wire utilization, and optimize the overall effect of toroidal core processing.

3. Reduce Processing and Assembly Risks

Silicon steel is brittle, and sharp edges are prone to chipping and slagging during subsequent processing, handling and assembly, which not only affects core accuracy but also poses safety hazards to operators. Chamfering enhances the structural stability of core edges, reduces chipping probability; at the same time, smooth edges facilitate the fitting assembly of the core with coil bobbins and housings, improving the mechanical interchangeability of the overall assembly. In manual or automated winding scenarios, chamfering also reduces wire jamming probability and improves winding efficiency.

4. Reduce Vibration and Noise

Uneven magnetic field distribution and mechanical stress concentration can cause core vibration and noise during operation. Chamfering optimizes magnetic field distribution and relieves edge stress concentration during silicon steel sheet lamination, which can reduce equipment operation noise to a certain extent, especially suitable for precision electronic equipment with high noise reduction requirements.

II. Why Do Some Silicon Steel Toroidal Cores Need Chamfering While Others Don't?

Although chamfering has multiple advantages, it is not required for all silicon steel toroidal cores. The core depends on product purpose, performance requirements, cost budget and installation environment. The specific trade-off logic is as follows:

Core Scenarios Requiring Chamfering

High-precision magnetic equipment: Such as high-frequency transformers, precision inductors, magnetorheological polishing equipment, etc., especially Transformer Core used in high-frequency transformers, which have high requirements for magnetic field uniformity and iron loss control. Chamfering can optimize magnetic field distribution, improve equipment efficiency and stability, and is an essential process for such Toroidal Core.
Cores requiring winding of insulated wires: Whether manual winding or automated winding, as long as the coil is in direct contact with the core, chamfering is a key measure to protect the insulation layer and avoid short circuits, such as motor stator cores, power inductor cores, etc..
Grain-oriented silicon steel cores: The magnetic permeability of grain-oriented silicon steel is directional, and the edge effect has a more significant impact on its performance. Chamfering can specifically optimize the direction of magnetic lines of force and reduce the negative impact of iron loss in the hard magnetization direction.
High-end equipment and export products: Such products have strict requirements for reliability, safety and noise reduction. As a detailed process to improve product quality, chamfering is a necessary means to meet industry standards and customer needs.

Core Scenarios Without Needing Chamfering

General equipment with low performance requirements: Such as ordinary low-frequency transformers, simple inductors, etc. The matching Transformer Core and Toroidal Core have low requirements for iron loss, noise and service life. Cores without chamfering can meet basic use needs without additional chamfering costs.
Scenarios with additional insulation protection or shell wrapping: If the core surface is covered with multiple layers of insulation coating, insulation paper, insulated bobbins, or some customers use plastic shells to wrap the core for protection, preventing direct contact between wires and the core, sharp edges will not damage the insulation layer or cause potential safety hazards, and the chamfering process can be omitted in such cases.
Cost-sensitive mass-produced products: Chamfering increases processing procedures, equipment investment and working hour costs. For mass-produced products competing at low prices, omitting chamfering can reduce production costs and improve cost performance on the premise of meeting core performance.

III. Process Points for Chamfering of Silicon Steel Toroidal Cores

For silicon steel toroidal cores requiring chamfering, process parameters directly affect the final effect. The core points should comply with industry standards and the characteristics of silicon steel: the chamfer angle is usually 45° (balancing magnetic field optimization and processing convenience), the chamfer length is controlled at 1-2mm, and the ratio of chamfer radius to outer diameter is not less than 1/30 to ensure performance requirements. Silicon Steel Core Processing mainly adopts mechanical grinding for chamfering, which can accurately process edge corners and adapt to the brittle and tough characteristics of silicon steel. Especially for Grain-oriented Silicon Steel Core, it is necessary to precisely control the grinding force to avoid damaging the magnetic conductive structure, ultimately ensuring the core chamfering effect, overall quality and Core Performance Optimization goals.

IV. Conclusion

The chamfering process of silicon steel toroidal cores is essentially an optimal choice based on product performance requirements, cost control and application scenarios. Chamfering is not a redundant process, but a core means to ensure product reliability and improve performance in high-demand scenarios; at the same time, reasonably omitting chamfering in low-demand scenarios is also a rational decision to control costs and enhance market competitiveness.

As a professional manufacturer of silicon steel Toroidal Core, we are deeply engaged in Silicon Steel Core Processing. We can provide customized chamfering processing solutions for different application scenarios such as Transformer Core, Grain-oriented Silicon Steel Core and inductor core, according to customers' product purposes, performance indicators and cost budgets, balancing product quality and cost performance, and helping customers achieve Core Performance Optimization.
