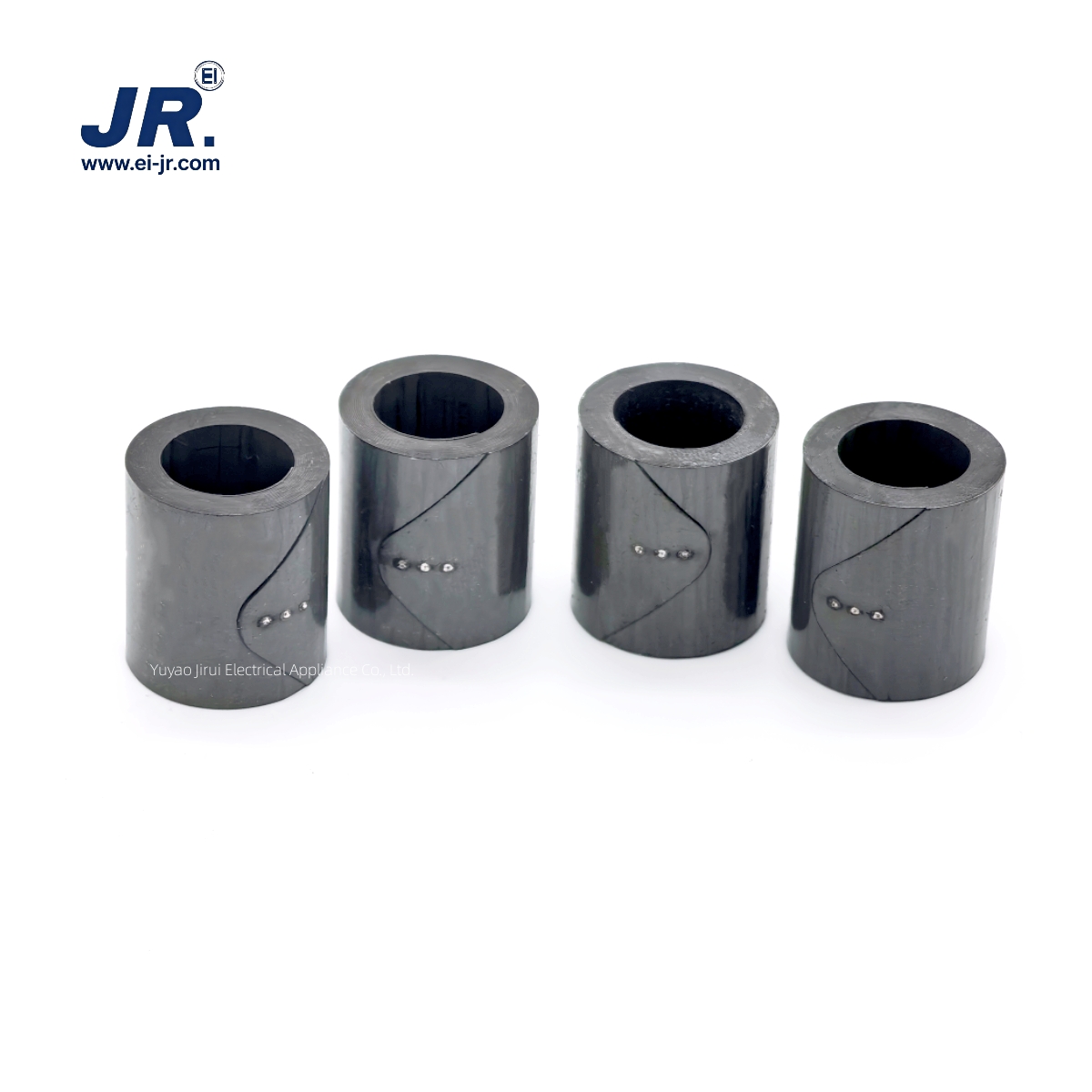

Instrument Transformer Core


Availability:

Quantity:

Inquire Add to Basket

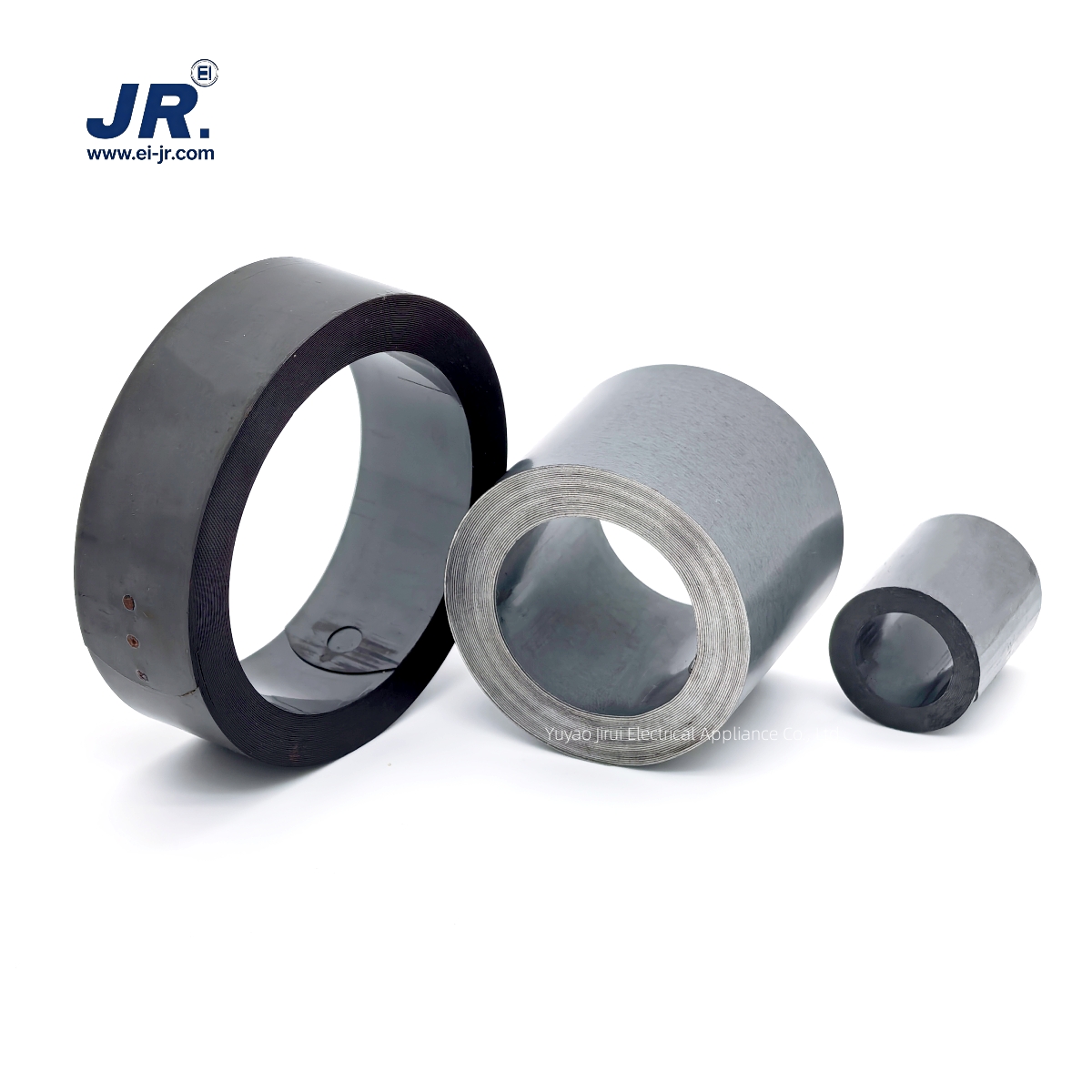

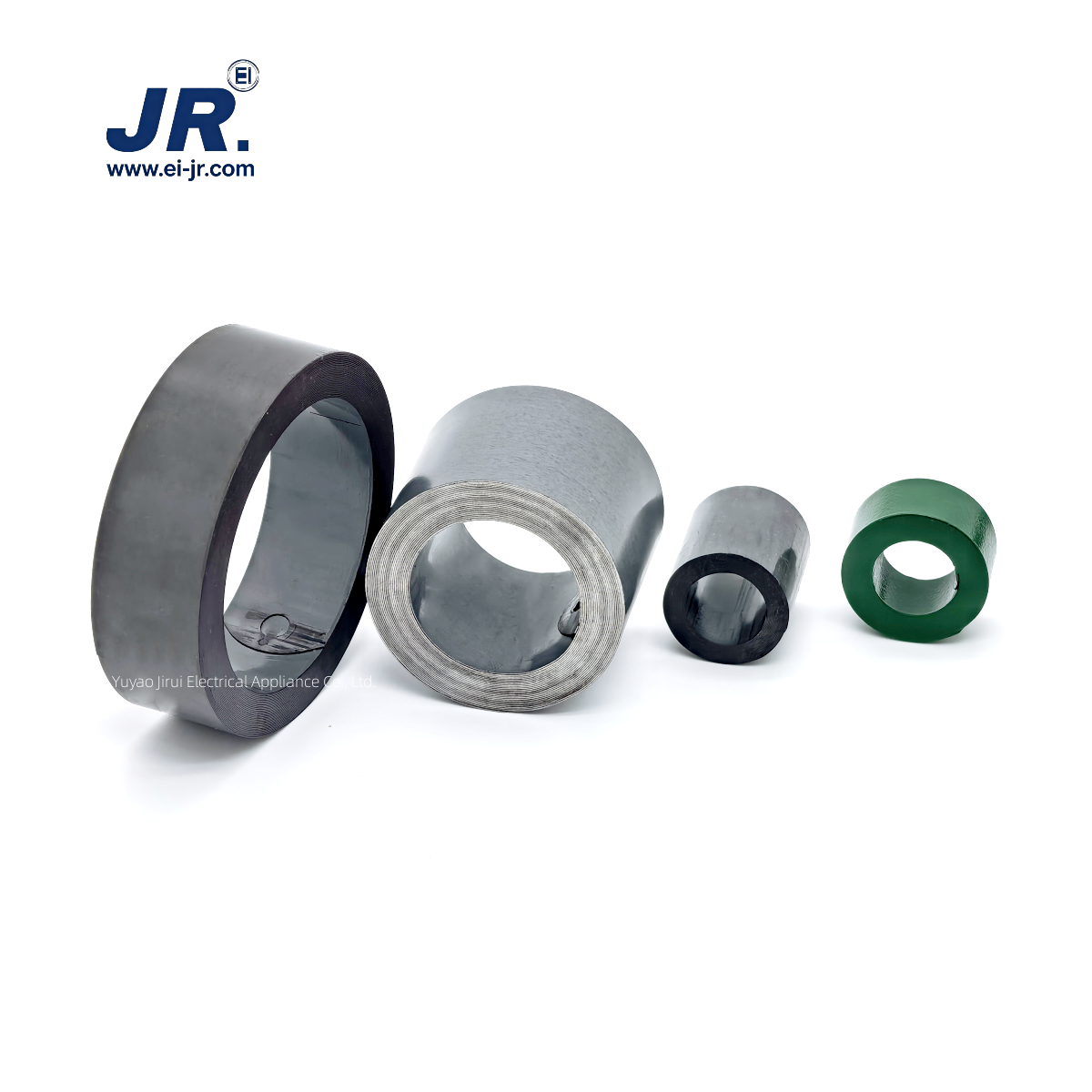

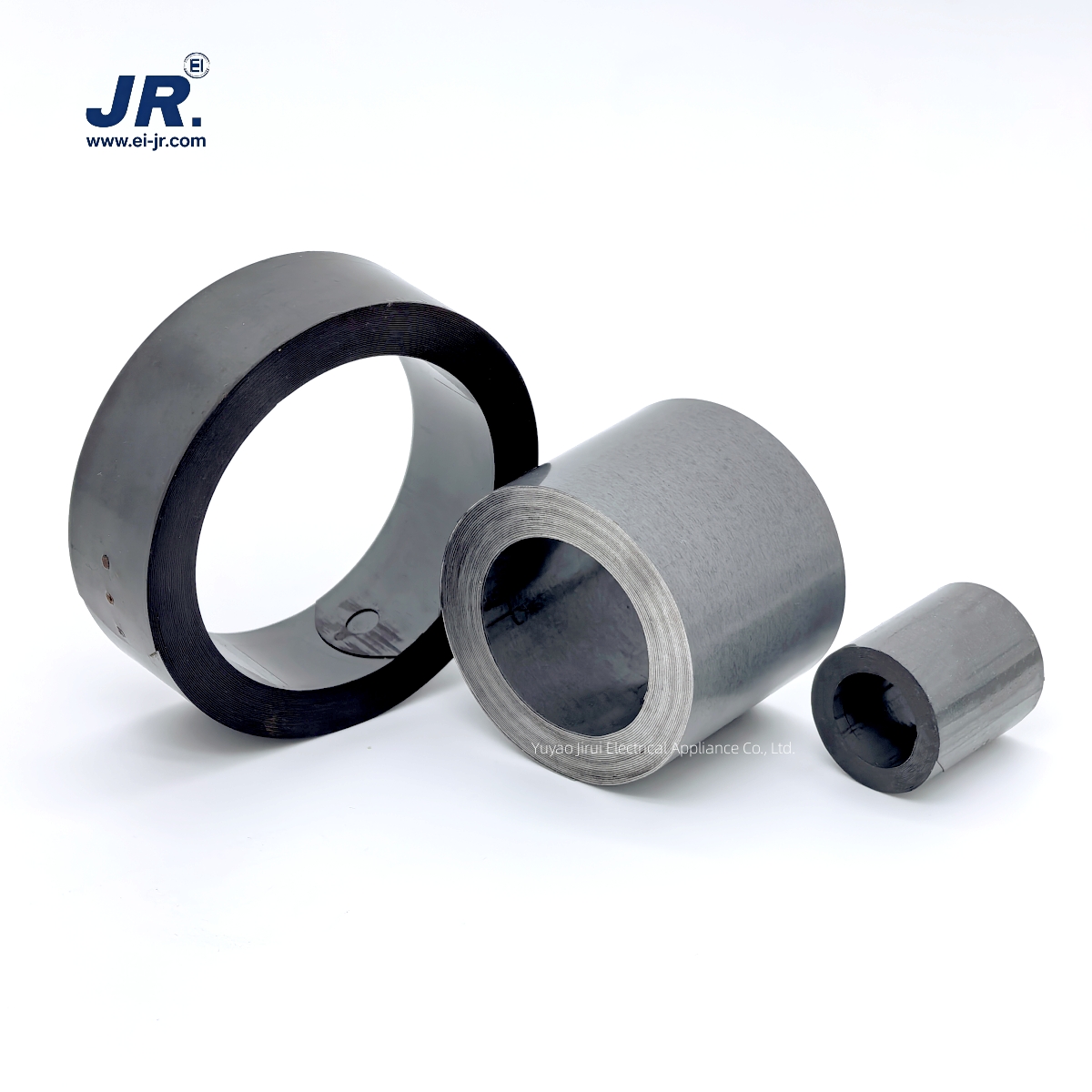

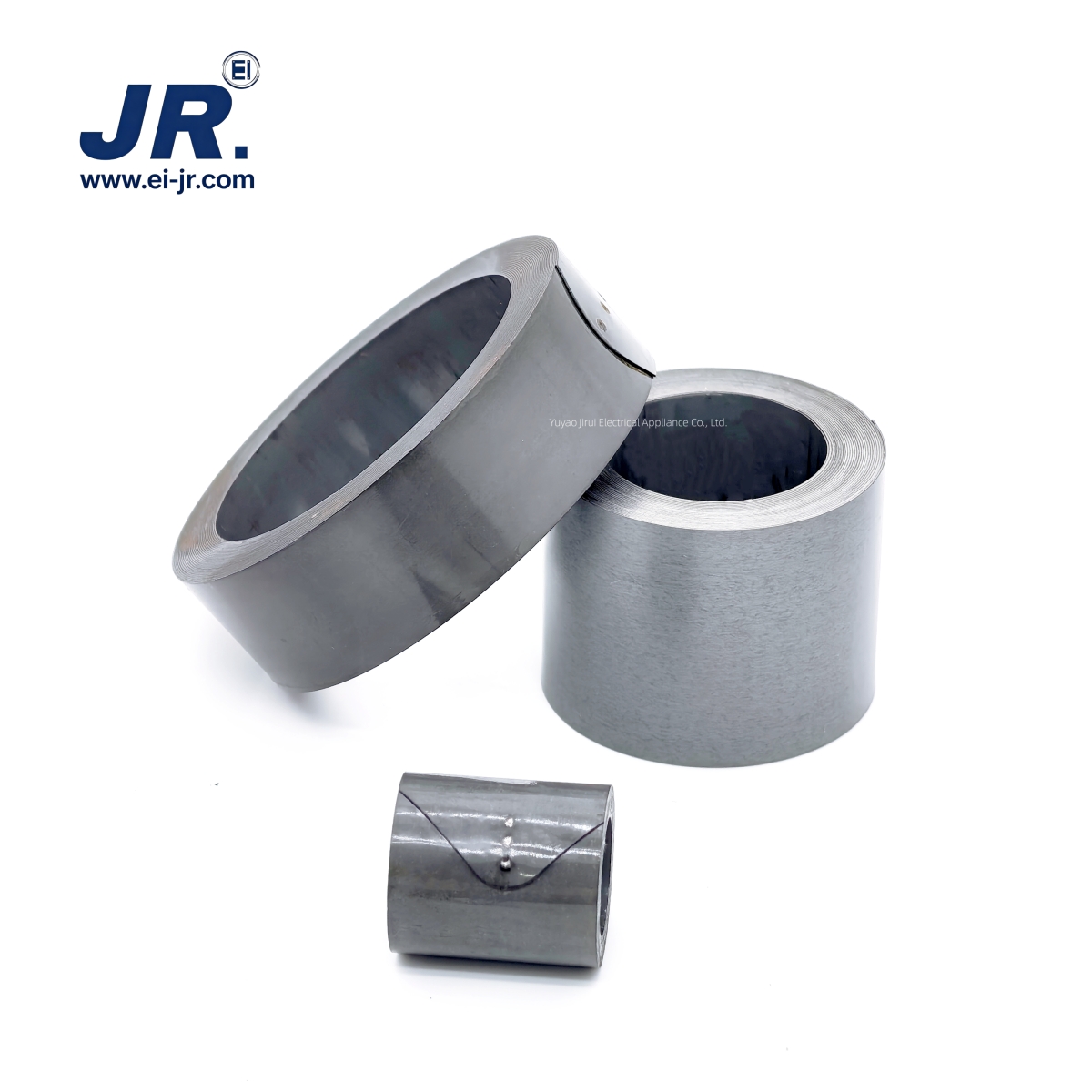

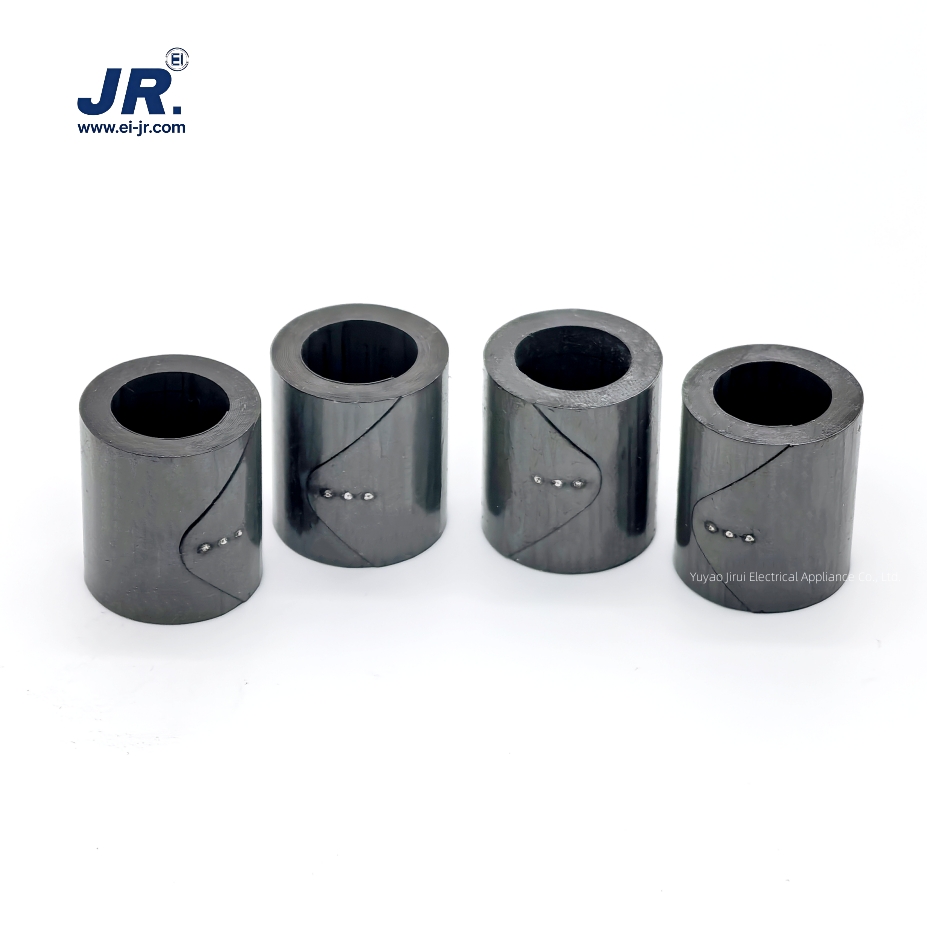

Our transformer core is made of high-quality silicon steel (electrical steel), which is professional for current transformers and voltage transformers.

We focus on the R&D and production of silicon steel transformer cores, with mature technology and strict quality control.

The core is made of oriented silicon steel and non-oriented silicon steel, with closed magnetic circuit and no magnetic leakage, ensuring measurement accuracy.

Product Description

As the "heart" of transformers in power systems, the transformer core is made of high-quality silicon steel, which is a core component for accurate conversion of current and voltage signals, energy transmission and relay protection.

It has the advantages of high magnetic permeability, low loss and high stability, and is widely used in various power equipment.

Toroidal Core Specification

Our custom toroidal cores are precision-engineered from high-quality silicon steel to meet your specific application requirements. With customizable dimensions ranging from:

Inner diameter (A): 20–300 mm
Outer diameter (B): 30–350 mm
Height (C): 10–120 mm
These cores deliver low core loss, high permeability, and excellent performance for power transformers, audio transformers, and inductors. Each toroidal core is manufactured to tight tolerances, ensuring consistent quality and reliable operation in your electrical systems.

Product Parameters

SIZE	Customized
THCIKNESS	0.23-0.35MM (CRGO) 0.35-0.5MM (CRNGO)
MATERIAL	M3, M4, M5, M6 (CRGO) 35W250, 35W300, 35W400 (0.35MM) M330-35A 50W250, 50W310, 50W400, 50W470, B23R075-LM，B23R085-LM，B27R090-LM，B30P100-LM，B30P120-LM
FREQUENCY	50HZ-1000HZ
COATING	T2 Inorganic ( CRGO ) T4 Semi-organic (CRNGO)
PROCESS TECHNOLOGY	ANNEALLING & WITHOUT ANNEALLING
APPLIANCE	CONTROL TRANSFORMER, AUTO TRANSFORMER, ISOLATION TRANSFORMER,POWER TRANSFORMER，BALLAST,REACTOR,INDUCTOR,INVERTER POWER,TOROIDAL TRANSFORMER ,VOLTAGE STABILIZERS.etc.

Core Advantages

1.High-Quality Silicon Steel Material

Selected high-purity silicon steel (silicon content 0.8%-4.8%), with excellent magnetic conductivity and electrical resistivity. Adopt high-grade CRGO and non-oriented silicon steel, such as Baosteel, Wugang to ensure stable performance. Thickness options: 0.23mm, 0.27mm, 0.30mm, 0.35mm, etc., to meet different application needs.

2. Precision Manufacturing Process

Automatic winding and CNC precision cutting, ensuring uniform magnetic circuit and high dimensional accuracy (±0.01mm). Vacuum annealing process to eliminate mechanical stress and improve silicon steel performance.

3. Low Loss & Energy Saving

Silicon steel material has low eddy current loss and hysteresis loss, reducing power consumption. Comply with "dual carbon" strategy, RoHS/REACH certification, green and low-carbon. At 1.7T/50HZ, the maximum core loss is only 1.05w/kg, with excellent energy-saving effect.
