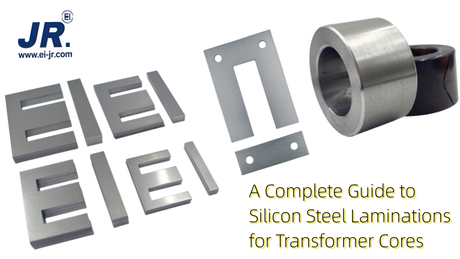

A Complete Guide to Silicon Steel Laminations for Transformer Cores

Silicon steel laminations are the foundational component of high-efficiency transformers and inductors. By stacking thin, insulated silicon steel sheets, engineers minimize eddy current losses while maximizing magnetic permeability—critical for reliable power transmission and measurement.

1. What Are Silicon Steel Laminations?

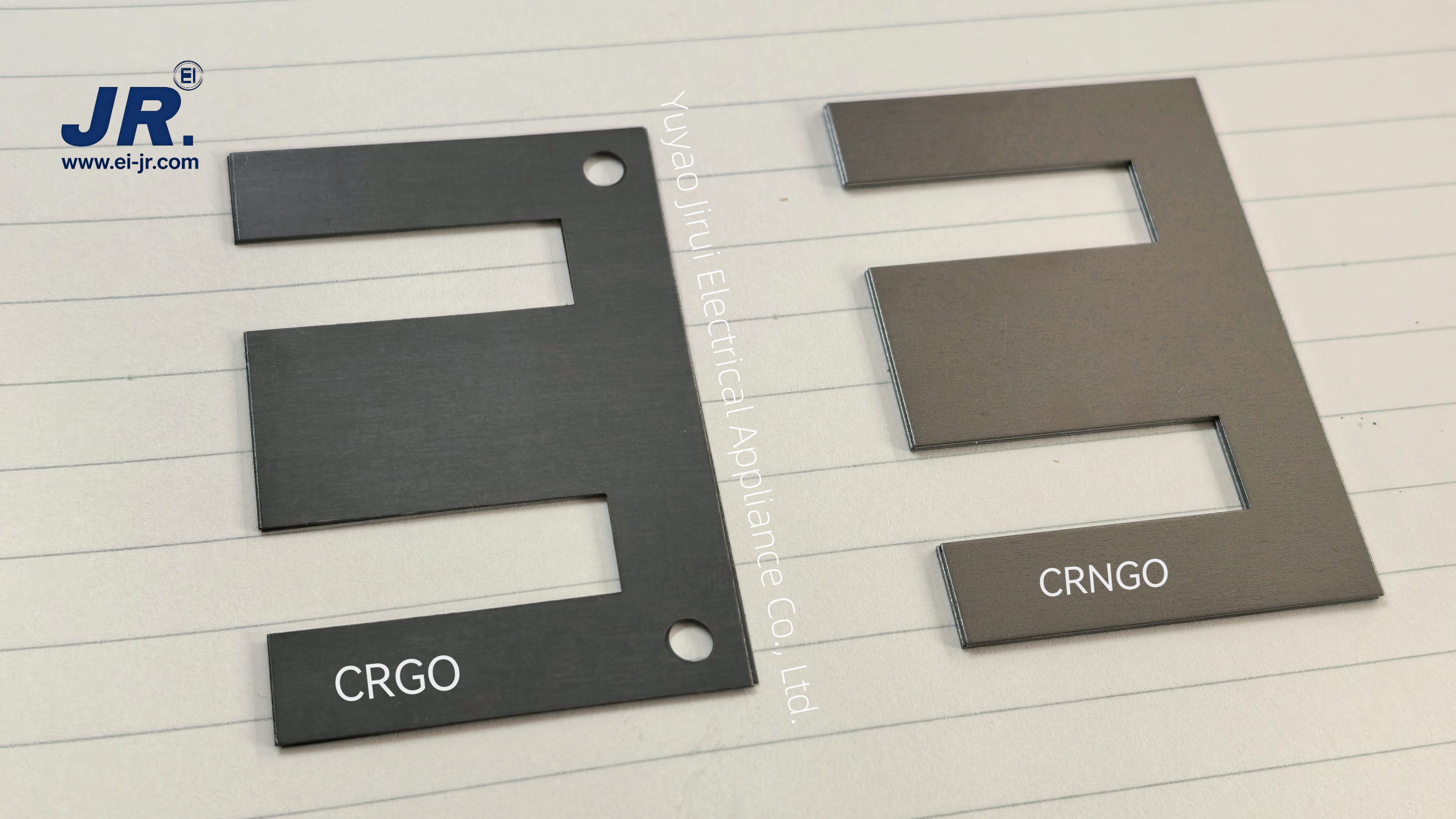

2. Oriented vs. Non-Oriented Silicon Steel

• Oriented Silicon Steel:

Crystals are aligned along the rolling direction, delivering extremely high permeability and low iron loss in one direction. Ideal for power transformers, large distribution transformers, and high-voltage applications.

• Non-Oriented Silicon Steel:

Crystals are randomly oriented, offering uniform magnetic properties in all directions. Best suited for motors, generators, toroidal transformers, and current transformers where balanced performance across axes is required.

3. Core Lamination Designs: EI vs. Toroidal vs. UI

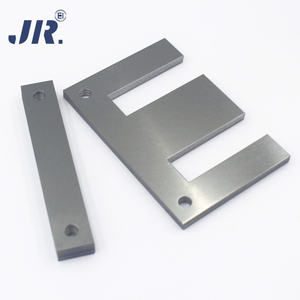

• EI Laminations:

The most common design, easy to assemble and cost-effective. Used in small-to-medium power transformers and control transformers.

• Toroidal Cores:

Circular, wound design with minimal air gap and low leakage flux. Delivers superior efficiency and compact size—perfect for audio transformers, precision current transformers, and high-end power supplies.

• UI Laminations:

Similar to EI but split into U and I segments, offering flexibility in core assembly for specialized applications.

4. The Manufacturing Process of Precision Laminations

1. Material Selection:

Choose between GO or NO silicon steel coils based on customer specifications.

2. Slitting & Cutting:

Precision slitting to required width, followed by CNC stamping or laser cutting to exact lamination dimensions.

3. Insulation Coating:

Apply a high-temperature insulating layer to prevent inter-laminar eddy currents.

4. Heat Treatment:

Anneal laminations to relieve stress and optimize magnetic properties (critical for low iron loss).

5. Stacking & Quality Control:

Automated stacking to maintain tight tolerances, with final testing for permeability, loss, and dimensional accuracy.

5. Key Performance Metrics for Laminations

• Iron Loss (W/kg):

Lower values mean less energy wasted as heat (measured at 50Hz/1.5T for standard grades).

• Magnetic Permeability:

Higher permeability allows more efficient magnetic flux transfer, reducing core size.

• Dimensional Tolerance:

Tight tolerances (±0.02mm) ensure proper stacking and consistent performance across batches.

• Insulation Resistance:

High inter-laminar resistance prevents eddy current losses and ensures long-term reliability.

Silicon steel laminations are the unsung heroes of modern power systems. By understanding the differences between oriented/non-oriented steel, core designs, and manufacturing processes, engineers and purchasers can select the optimal laminations to maximize transformer efficiency, reduce energy waste, and ensure long-term reliability.

At Yuyao Jirui Electrical,we specialize in high-precision EI, UI, and toroidal laminations made from GO/NO silicon steel. Our automated production lines deliver consistent quality, with a monthly capacity of 800+ tons to support global transformer projects.
