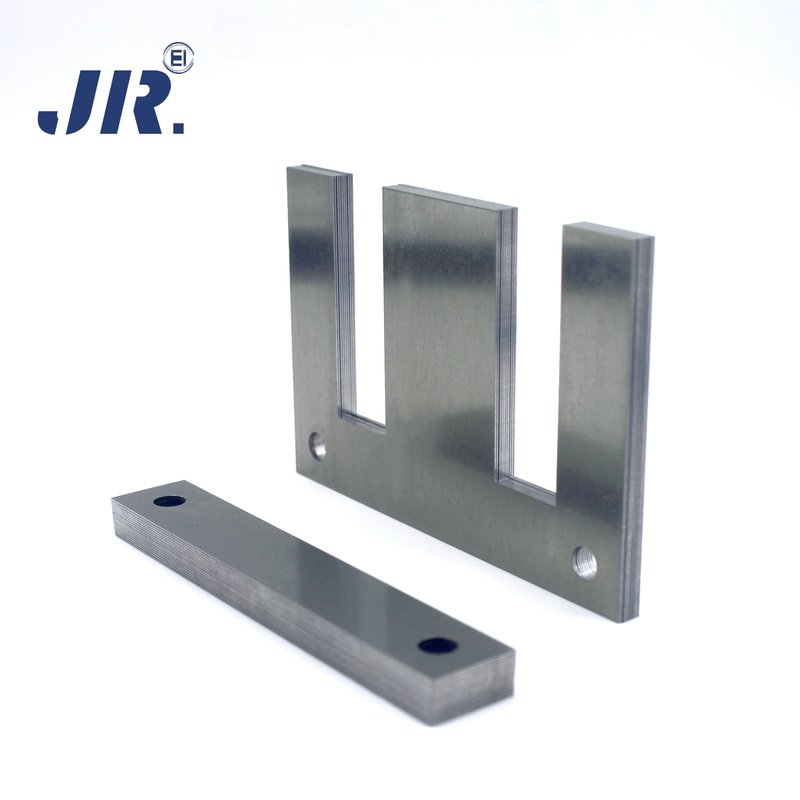

EI41 Transformer Core Silicon Steel Laminations


Availability:

Quantity:

Inquire Add to Basket

Model:
EI Lamination
Brand:
Jirui
Code:
8504901900

EI lamination is made by the silicon steel strip. The model of EI lamination in standard sizes is from EI-26 to EI-240, and the model of EI lamination in non-standard sizes is from EI-28.2 to EI-288. The gap sizes of transformer lamination core can be customized.

Product Parameters

SIZE

EI-26 to EI-288 (MONO PHASE)

3PEI-16 to 3PEI-50 (TRIPLE PHASE)

THCIKNESS

0.23-0.35MM (CRGO)

0.35-0.5MM (CRNGO)

MATERIAL

M3, M4, M5, M6 (CRGO)

35W250, 35W300,3 5W400, M330-35A (0.35MM)

50W400, 50W470, 50W600, 50W800, 50W1300

FREQUENCY

50HZ-60HZ

COATING

T2 Inorganic ( CRGO )

T4 Semi-organic (CRNGO)

PROCESS TECHNOLOGY

ANNEALLING & WITHOUT ANNEALLING

APPLIANCE

CONTROL TRANSFORMER

AUTO TRANSFORMER

ISOLATION TRANSFORMER

POWER TRANSFORMER

BALLAST

REACTOR

INDUCTOR

INVERTER POWER

VOLTAGE STABILIZERS.etc.

Product Description

EI41 Transformer Core Silicon Steel Laminations

High-quality EI41 Transformer Core Silicon Steel Laminations, cold rolled low-loss EI Laminations for small/mid-power transformers.

These EI41 Transformer Core Laminations are made of high-grade cold rolled silicon steel (electrical steel), with optional grain oriented (CRGO) and non-grain oriented (CRNGO) materials to meet different transformer performance requirements.

Dimensional accuracy: Strict tolerance control (±0.05mm) ensures the splicing tightness of EI41 Silicon Steel Laminations, avoiding magnetic leakage and improving overall transformer stability.

Premium EI Lamination Silicon Steel Cores for Optimal Magnetic Performance

We proudly presents high-quality EI Lamination Silicon Steel Cores, engineered to deliver superior performance in transformers, inductors, and electromagnetic applications. Our products are designed to meet the rigorous demands of modern electrical engineering while ensuring energy efficiency and operational reliability.

Introduction

- Standard Sizes:  EI-26 to EI-288 (comprehensive range for diverse applications)
- Custom Air Gap:  Tailored air gap solutions available upon request
- Material:  High-grade cold-rolled silicon steel

Why Choose Us？

- 20+ Years of Electrical Steel Expertise
- Technical Support Consultation
- Fast Sample Preparation: 3-5 Working Days
- Flexible MOQ with Competitive Pricing

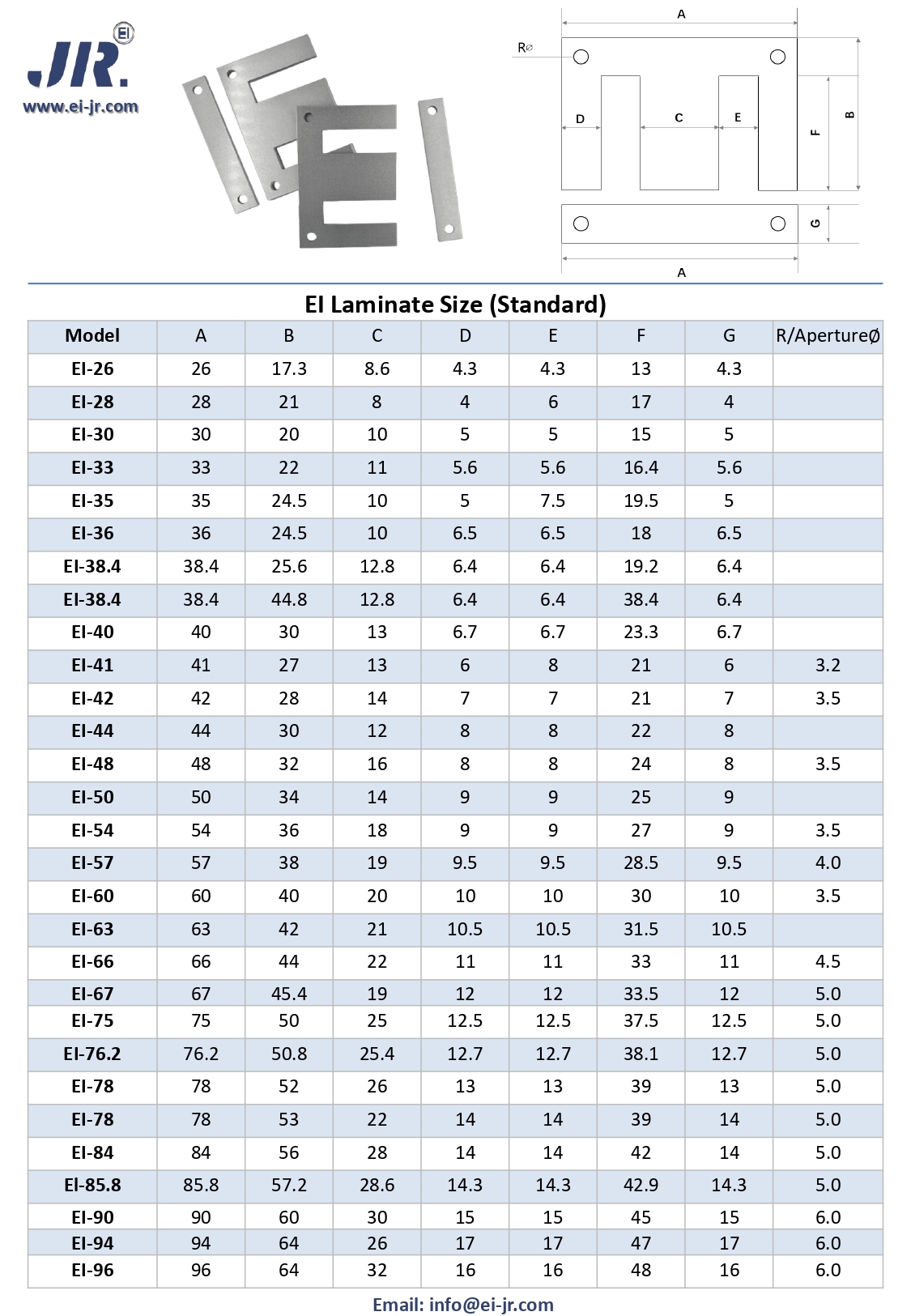

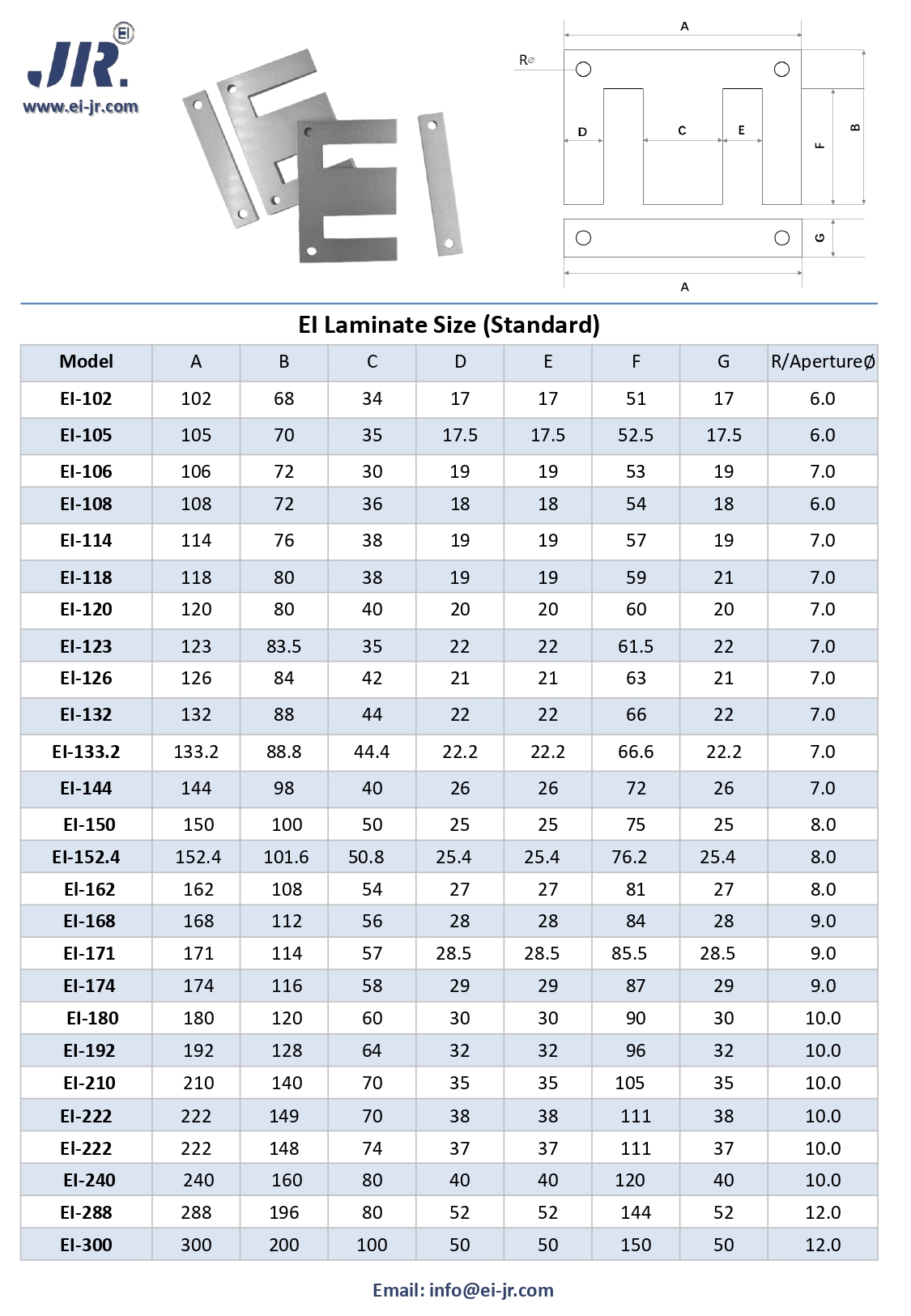

EI Lamination Specification

EI第一页 EI第二页

Company Information

工厂图片_page-0001

Production workkshop Packaging and shipping Production and processing technology description Product show

FAQ

Q1:Are you a Manufacturer?
A:Yes,we both Manufacturer and trading company,you will own high quality and competitive price.

Q2:What is your sample policy?
A:The sample is free,you only need to bear the freight .

Q3: Do you have the products in stock?
A:Yes,we will keep some general ones in stock.

Q4: What's the delivery time?
A:Sample order needs 5-7 days.Formal order needs 15-21 days. Specific delivery time depends on the order situation.

Q5: What's your payment terms?
A: We usually accept T/T at sight as the main payment terms,and other payment can also be negotiated.

Q6:What is your terms of delivery?
A: EXW,FOB, CIF From Ningbo Port.

Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
